Detailed Product Description
| Product Name: | Pulse Valve Membrane | Membrane Material: | NBR, FKM |
| 1 Set: | 1pc DB120 Diaphragm, 1pc DB16 Diaphragm, 2pcs Springs | Fitted Pulse Valve Model: | VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM72 |
| Highlight: | DB120 Diaphragm Repair Kit , DB120/C Diaphragm Repair Kit , Mecair DB120/C |

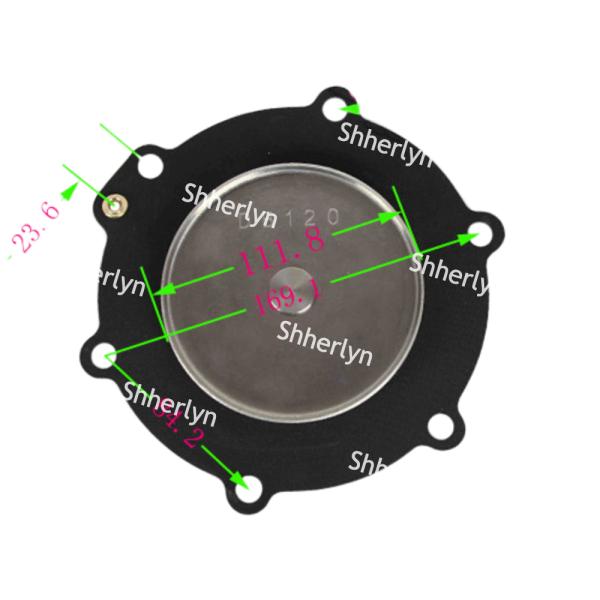

DB120 DB120/C 3'' Diaphragm Repair Kit For Mecair Pulse Valve
Product Description:
DB120 ( DB120/C ) Diaphragm ( Membrane ) for Mecair pulse valve VNP220, VEM220, VNP420, VEM420, VNP424, VEM424, VNP620, VEM620, VNP720, VEM72; NBR material is standard, working temperature range is -5 to +80 ℃; Viton material is optional, for high temperature, working temperature range is -10 to +120 ℃. On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve. Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.
Applications:
The baghouse pulse jet system utilizes M/D series diaphragms (such as M/D25) as the core sealing and actuating components of pulse valves. These diaphragms control the instant release of compressed air in the dust collector, enabling high-frequency jetting (multiple times per second) to clean the surface area of filter bags from accumulated dust.
Operating process: electrical signal triggers pulse valve → diaphragm opens instantly → compressed air is injected into the filter bag through the jet pipe → filter bag expands and shakes off dust → diaphragm resets and closes precisely.
Compatible valve models:
- Autel AE1825B, AE2825B, AE1825R, etc., 1-inch pulse valves
- MD series pulse valves (e.g., MD120, MD125, MD140S), especially suitable for valves with nominal diameters of 20mm~76mm.
Powder conveying and silo arch breaking systems are essential for pneumatic conveying pipeline cleaning and material bridge breaking in silos. These systems utilize pulsating air flow to prevent clogging and are suitable for scenarios involving coal dust, grains, plastic pellets, and more.
| Industry | Application Scenarios | Compatible Diaphragms | Key Requirements |
| Cement Manufacturing | Kiln end dust collector, raw material mill dust removal | M/D25, MD140S | Resistant to normal temperature dust (<80℃) |
| Iron and Steel Smelting | Sintering machine head dust removal, blast furnace gas purification | MD150S, MD162S | Requires cooling device (temperature ≤60℃) |
| Wood Processing | Sawdust dust collection system | MD125 | Explosion-proof design |
| Food/Chemical Industry | Powder pneumatic conveying and blockage clearing | M/D25 (TPE material) | Oil-free dry air (FDA compatibility) |
| Waste Incineration | Flue gas treatment system | Requires EPDM/FKM diaphragms | Corrosion-resistant (acidic gases) |
Ordering Code of Diaphragm For Mecair Pulse Valve:
| Ordering code | Fitted valve code | Valve port size | Material |
| DB16/G | VNP206, VEM206, VNP306, VEM306 | 3/4'' | NBR |
| DB18/G | VNP208, VEM208, VNP308, VEM308, | 1'' | NBR |
|
| DB18M | VNP608, VEM608, VNP708, VEM708 | 1'', 1-1/2'' | NBR |
| DB112/G | VNP212, VEM212, VNP312, VEM312, | 1-1/2'' | NBR |
|
| DB114/C | VNP214, VEM214, VNP314, VEM314, VNP414, | 1-1/2'' | NBR |
|
| DB116/C | VNP216, VEM216, VNP416, VEM416, VNP616, | 2'' | NBR |
|
| DB120/C | VNP220, VEM220, VNP420, VEM420, VNP424, | 2-1/2'', 3'' | NBR |
|
| Tips: EPDM, FKM all available. |
