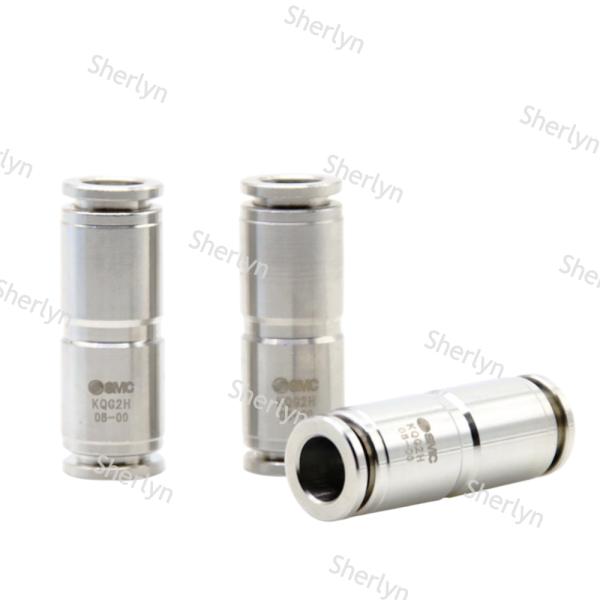

Product Description:
The joint is made of stainless steel 304 material, and the product is suitable for use in copper and zinc free environments as well as corrosive environments.
There are multiple models and specifications, widely used in various pneumatic systems.
Excellent circulation performance, simple and convenient plug and unplug connections, and safe, reliable, and durable connections with the trachea.
The threaded part is coated with sealant, and M5 metric threads are equipped with sealing rings to ensure that there is no leakage in the threaded connection part.
Applications:
Industrial Dust Removal and Environmental Protection Equipment
Bag type dust removal system: connecting pulse valve and air bag, used for high-temperature dust environment in cement plant kiln tail and steel plant sintering machine (such as DMF-Y submerged valve matching).
Sewage treatment aeration control: corrosion-resistant design to resist acidic media, suitable for quick connection of pneumatic pipelines.
Food and Pharmaceutical Industry
Aseptic fluid delivery: Oil free design+FKM seal, compliant with FDA standards, used for steam cleaning pipelines in filling lines (such as KQG2H16-04S type).
High temperature disinfection system: resistant to steam at 150 ℃, suitable for fermentation tanks and CIP cleaning pipelines.
Chemical and Energy Fields
Corrosive medium transmission: SUS316 material is resistant to acids, alkalis, and solvents and is used for chemical agent transportation pipelines.
Steam power system: The straight through structure (such as KQG2H23-00) optimizes the connection of steam pipelines to reduce the risk of leakage.
Automation and Pneumatic Control
Pneumatic actuator connection: Compact design integrated into the robotic arm fixture (such as CQ2 cylinder pipeline) to improve response speed.
Vacuum equipment: supports -100kPa vacuum environment, used for suction cup control system in electronic semiconductor manufacturing.
| Type | [Fitting] One-Touch Coupling | Fitting Type | Union with same diameter |
| Tube Size 1(φ) | 8 | Body Material | 316 Stainless Steel |
| Application | Standard | Thread Portion Material | No Thread Part |
| Seal/O-Ring Material | [Fluororubber] Special FKM (Fluorine Coated) | Tube to Tube Union Shape | Union Straight |
| Compatible Fluid | Water / Air | Type Of Connection | Tube Connection |
| Number of Connection Tubes(piece) | 2 | Color | silvery |
Support and Services:
Our Product Technical Support team for Pneumatic Pipe Fittings is dedicated to providing assistance with product installation, troubleshooting, and maintenance. Our experts are available to answer any technical questions and provide guidance to ensure the proper functioning of the fittings.
In addition to technical support, we offer a range of services for our Pneumatic Pipe Fittings, including on-site installation assistance, training sessions, and customized solutions to meet specific requirements. Our goal is to help our customers maximize the performance and efficiency of their pneumatic systems.
Packing and Shipping:
Product Packaging: The pneumatic pipe fittings are carefully packaged in a sturdy box to ensure safe transportation.
Shipping: We offer fast and reliable shipping services to deliver the pneumatic pipe fittings to your doorstep in a timely manner.
